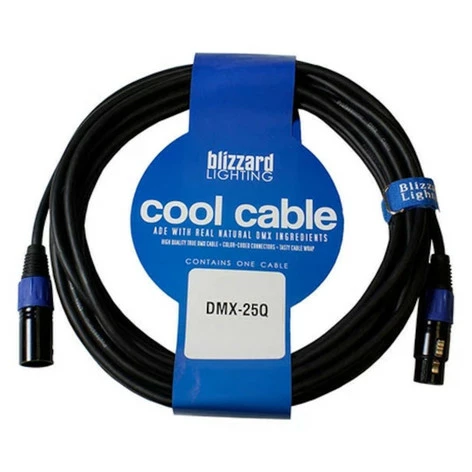

Blizzard DMX-5PIN-25Q 25′ 5-pin DMX Cable

Blizzard Lighting’s DMX-5PIN-25Q is part of the Cool Cable™ DMX lighting control cable series. This 25′ 5-pin XLRM to XLRF DMX cable is ultra-flexible, abrasion-resistant and durable with 120 ohm impedance, low capacitance, and features both foil and braid shields. These high quality cables meet many standards including EIA-485 and USITT standards for DMX512 cable specifications.

A portion of the profits earned by Blizzard Lighting from the sale of these cables is donated to help fund ongoing cancer research.

Features

• Double shield (foil and braid)
• 120 ohm impedance
• Low capacitance
• High quality true DMX cable
• Color-coded connectors
• Limited lifetime warranty
• Velcro cable wrap included

Specifications

• Length: 25 ft
• Connectors: 5-Pin XLR Male/Female
• Number of Conductors: 2
• Conductor Material: Oxygen free copper wire
• Insulation Material: PE
• Outer Shield: Braid and Foil (Double)
• Outer Jacket Material: PVC
• Operating Temperature Range: -30°~70°
• Minimum Bend Radius (Install): ≥ 120 mm
• Nominal Characteristic Impedance: 100 ohm
• Nominal Capacitance Conductor to Conductor @ 1KHz: 63PF/m
• Nominal Cap Cond. To Other Cond. & Shield @ 1KHz: 105PF/m
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20°C: ≤ 0.098 ohm/m
• Individual Pair Nominal Shield DC Resistance @ 20°C: ≤ 0.026 ohm/m
• Nominal Attenuation: 0.6 (@ 1 MH z) dB/100 ft
• Max Recommended Current @ 25°C: 2.1 Amps per conductor
