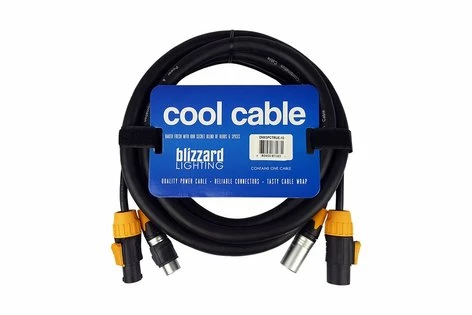

Blizzard DMX5PCTRUE-10 Powercon True1 And 5-pin DMX Combo Cable, 10′

The DMX5PCTRUE 10, from Blizzard Lighting’s Cool Cable powercon true1 and DMX Combo Cables, is a 10′ IP65 rated powercon true1 and 5-pin DMX combo cable. Replace any set of individual powercon true1 compatible power and 5-pin DMX extensions with a single neatly wrapped outdoor lighting cable. The power cable features heavy-duty 14AWG wire, and is fitted with locking powercon compatible input/output connectors. While the DMX meets the USITT standards for DMX512 cable specifications with 120 ohm impedance, low capacitance, and foil and braid shields, and have IP65 rated 5-pin XLR connectors.

Blizzard DMX5PCTRUE 10 Features:

• DMX Signal/Data:
  • IP65 rated
  • Double (foil and braid) shield
  • 120 ohm impedance
  • Low capacitance
  • High quality true DMX cable
• Power Cable:
  • powercon true1 compatible in/out connectors
  • Heavy-Duty 14AWG
  • Lockable 16A single phase connector (USA: 20A)
  • Dust and water resistant
  • Easy and reliable twist lock system
• Extremely robust and reliable
• UL recognized components

Blizzard DMX5PCTRUE 10 Specifications:

• Length: 10 ft
• DMX Signal/Data:
  • IP65 rated
  • Connectors: 5-pin DMX male/female
  • Shield: Double (foil and braid)
  • Number of Conductors: 2
  • Impedance: 120 ohm
• Power Cable:
  • Connectors: powercon true1 compatible in/out
  • Wire Gauge: 14AWG
• Warranty: Limited lifetime
