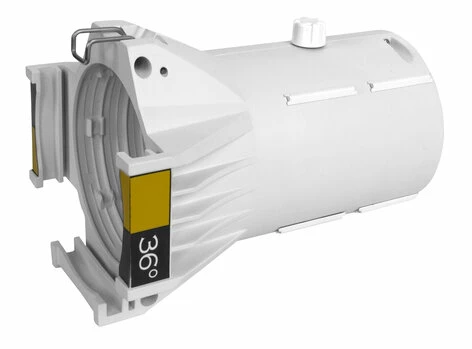

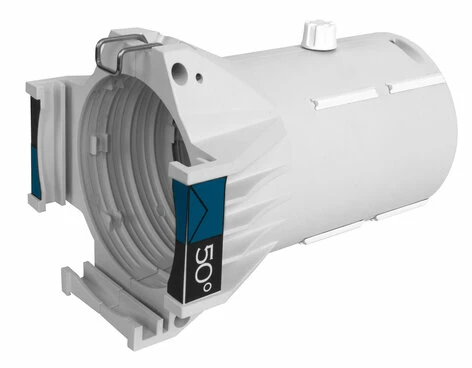

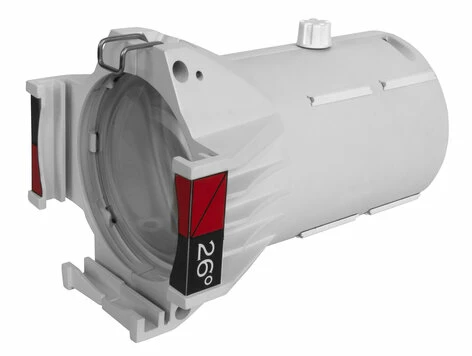

Chauvet Pro OHDLENS-WHT Ovation Ellipsoidal HD Lens Tube In White

Available in either 19°, 26°, 36° or 50°, Chauvet Professional’s Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures that are white in color as well as other standard ERS-style fixtures. These lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.

Features

• Fixed focal length lens tube for the Ovation ellipsoidal fixtures
• Dual aspheric lenses provide precise focus for crisp gobo projection
• Integrated gel frame holder and gel frame included

Specifications

• Optical:
  • Installed Optics (19°): 19°
  • Installed Optics (26°): 26°
  • Installed Optics (36°): 36°
  • Installed Optics (50°): 50°
• Construction / Physical:
  • Dimensions (19°, 26°, 36°, and 50° lens): 9.64″ x 6.85″ x 6.85″ (245mm x 174mm x 174mm)
  • Weight (19°): 4.2 lbs (1.9 kg)
  • Weight (26°): 4.0 lbs (1.8 kg)
  • Weight (36°): 3.8 lbs (1.7 kg)
  • Weight (50°): 4.0 lbs (1.8 kg)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25″ (159mm)
• Certifications / Qualifications:
  • IP Rating: IP65, outdoor/wet
