City Theatrical 5988 RadioScan Spectrum Analyzer, 2.4GHz

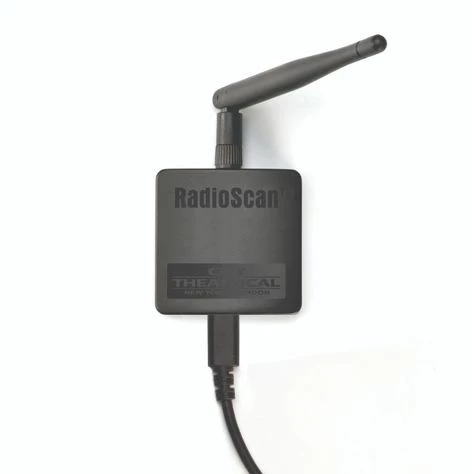

The RadioScan™ Spectrum Analyzer (P/N 5988), a 900MHz and 2.4GHz spectrum analyzer by City Theatrical enables users to easily visualize radio energy that is otherwise invisible.

RadioScan shows all radio activity near you in your chosen frequency, including frequency hopping gear like wireless DMX, as well as Wi-Fi networks, Bluetooth, wireless headsets, video transmitters, cordless phones, baby monitors, and microwave ovens.

RadioScan helps you to create a broadcast plan that optimizes available spectrum in your area, and helps prevent interference with other mission critical radio devices near you

By identifying SSIDs, broadcast channel, and the signal strength of wireless networks, RadioScan can help IT departments setup, maintain, and troubleshoot their wireless installations.

Users can view spectrum data either in Spectrogram view or Waterfall view, notes can be added, and snapshots can be taken and saved. Scans of any length can be recorded, saved, and emailed, and can be played back and reviewed by others with just the free RadioScan software, without the need for the RadioScan hardware dongle.

City Theatrical 5988 Features:

• 900MHz and 2.4GHz spectrum analyzer with dual band antenna
• Finds all radio activity nearby in chosen spectrum
• Identifies SSID and signal strength of Wi-Fi networks
• Shows either Spectrogram or Waterfall view
• Can record and play back scans of unlimited length
• Takes and saves snapshots
• Records text notes on scans
• Prompts Multiverse SHoW IDs
• Compatible with PC and Mac computers (USB to USB-C cable provided)

City Theatrical 5988 Specifications:

• Frequency: 902-928MHz and 2.4-2.483GHz
• Size (not including antenna): 2.0″ (50mm) L x 2.0″ (50mm) W x 0.5″ (25mm) H
• Length with antenna fully extended: 7.4375″ (188.9mm)
• Antenna: Detachable external omnidirectional broadband, 2dBi 900MHz, 4dBi 2.4GHz
• Construction: NEMA 4 IP20 ABS Plastic
• Power/Data Connector: USB-C with 1m (39.37”) USB-A to USB-C cable
• Computer Requirements:
  • System Requirements: Windows 10 / Mac OS 10.15 or higher
  • Display resolution: 800×600
  • Wi-Fi Radio: Internal or USB Wi-Fi adaptor
  • USB Port: 1.1 or better
  • RAM: 4GB
• Use Environment: Indoor
• Warranty: One year
• Manufacturing Origin: USA
• Compliance: FCC, IC, CE, RoHS
