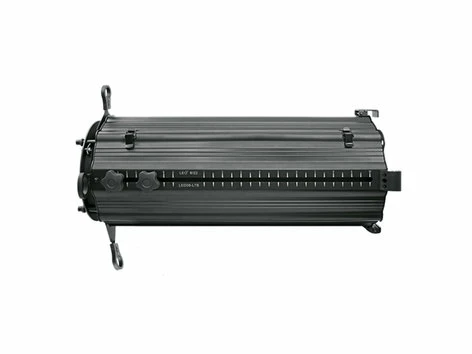

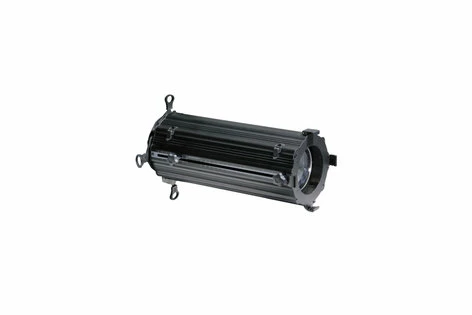

Leviton LED08-LTB LEO 8-22° Ellipsoidal Beam Zoom Angle Lens Tube For LED00-30B

The Leviton® LED08-LTB is a Lens Tube designed for use with the Leviton LED00-30B light engine (sold separately). It is a 50° rotating lens tube with gate and accessories holder. It covers an 8-22° field angle, and includes 4 blade shutters.

Leviton LED08-LTB Includes:

• Lens Tube
• Safety Guard 9.65″ x 9.65″ (245 x 245mm)
• Metal Color Frame 9.65″ x 9.65″ (245 x 245mm)
• User’s Guide
• “B” Size Pattern Holder (W 3-3/4″, Open Diameter 2-3/4″)

Leviton LED08-LTB Specifications:

• Construction: Extruded aluminium alloy and steel plates for a lightweight and rigid construction
• Paint/Finish: Black epoxy-polyester powder paint and anodizing, available in white, custom order
• Dimensions (WxHxD): 9.5″ x 18.5″ x 22.4″ (250 x 470 x 570 mm)
• Weight: 16.1 lbs. (7.3 kg)

*Notes:

– Do not operate the fixture without a lens tube installed.

– A complete fixture requires a light engine and lens tube.
