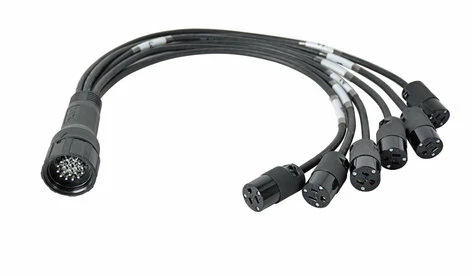

Lex EGBO100-6-515 15 Amp 6-Circuit EverGrip Molded LSC19 To NEMA 5-15 Edison Break-Out

Lex Products’ EGB0100-6-515 is a 15 Amp*, 125 VAC Molded Lex LSC19 12/3 SJOOW, 6′ (6) NEMA Edison 5-15 break-out cable. It converts a 6-circuit multi-cable to (6) Edison 5-15 female connector bodies so that equipment can be plugged in.

*Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).

Applications

• Motion Picture and Television Production
• Theatrical Production
• Concert Touring
• Live Events
• Convention Centers

Features and Benefits

• Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
• Pins and sockets cannot push back, extending the life of the connectors
• Rugged construction helps prevent broken conductors and loose or damaged ground rings
• Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
• Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
• Silver-plated brass contacts for high conductivity
• Available with a variety of Edison, stage pin or NEMA connectors
• All black construction blends into scenery and is ideal for stage or studio lighting applications

Specifications

• Rating: 20 Amp, 125 VAC
• Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
• Male Connector: Molded Lex LSC19
• Cable Gauge: 12/3 SJOW-A
• Female Connectors: (6) NEMA 5-15, 15 Amp Edison connector bodies
