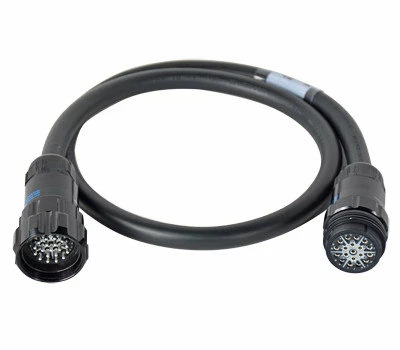

Lex ME1214-10-L 10′ 20A 6-Circuit LSC19 Multi-Cable Extension With Bonded Ground

20 Amp, 6-Circuit, 300 VAC, 12 AWG, 14 conductor multi-cable with LSC19 machined aluminum connectors, ground conductors bonded. Multi-cable carries 6-circuits of lighting power inside a single jacket, saving six individual runs of cable.

Applications:

• Motion Picture and Television Production
• Theatrical Production
• Concert Touring
• Live Events
• Convention Centers

Lex Products ME1214-10-L Features:

• Cables feature proprietary LSC19 6-circuit lighting connectors with 12 interlocking keys to help prevent spinning of the interior within the male and female housing
• Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damaged ground rings
• “Tempered Spring” female contacts maintain constant pin pressure to help ensure low resistance connections
• Machined aluminum housing with hard black anodized finish provides maximum durability
• Silver plated brass contacts for high conductivity
• Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
• All black construction blends into scenery and is ideal for stage or studio lighting applications

Lex Products Corp ME1214-10-L Specifications:

• Rating: 20 Amp, 300 VAC maximum (6-circuit)
• Maximum when used with 50% diversity of load (in accordance with table NEC 520-44).
• Ground Conductors Bonded: Six ground contacts are combined through the use of a ground ring to two ground conductors.
• Male Connector: LSC19-LMC-29
• Cable Gauge: 12 AWG, 14 conductor TPR
• Female Connector: LSC19-LFC-29
