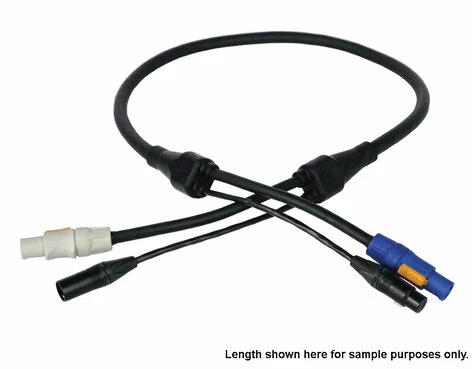

Lex PDE-005-FE-EM Powercon To Powercon W/ 5pin DMX Combo Cable, 5′

Interconnect devices such as LEDs and moving light fixtures through Lex’s PDE-FE-M paralleled power and data cables. Available in several lengths, the molded ‘Y’ construction provides strain relief and secure terminations.

Features

• Combining power and data within a common jacket
• Reduces cable tangling and clutter without the need for banding
• Simplifies interconnection of LEDs, moving lights, power supplies, etc.
• Cat 5e stranded cable supports RS-485 or Ethernet-based protocols
• Data cable may be terminated using XLRs, RJ45s, etherCONs, etc.
• 12 AWG power cable supports up to 20 Amps 120 VAC
• Power cable may be terminated using Edison, stage pins, locking connectors, etc.
• Molded ‘Y’ construction won’t deteriorate over the service life of the extension
• Molded ‘Y’ reinforces cable at the point of split, preventing separation of individual cables

Specifications

• Cable: (3) 12 AWG/ (4) 24 AWG shielded pairs; PVC jacket material
• Power Tail: 12/3 AWG SJOOW
• Data Tail: (4) 24 AWG shielded pairs in a PVC jacket
• Cable Length: 5′-0″
• Tail Length: 2′-0′
• Power Connectors: Customer specified
• Power Rating: 20 Amp, 120 VAC
