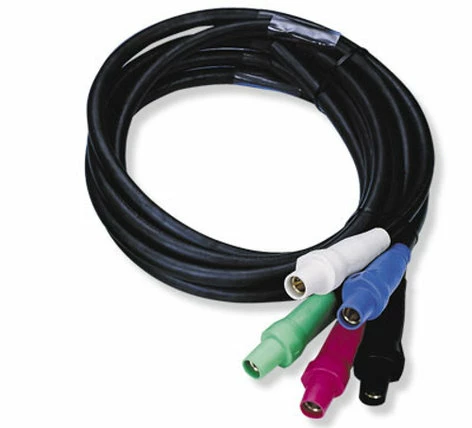

Lex TS500F-05 200 Amp Cam-Type Female Tie-In Set, 5 Ft

Lex Products’ TS500F-05 is a 200 Amp cam-type female tie-in set with bare end, 2/0 AWG type SC. This PowerFLEX™ cable assembly allows qualified personnel to tie-in to a lug or bus bar (ring terminal needed for bus bar).

Lex Products Corp TS500F-05 Features:

• Weatherproof type cable assembly
• Extra hard usage single layer thermoset jacket
• Provides superior durability over thermoplastic PPE
• Longer cable life
• Heat and flame resistant – will not melt

Lex Products Corp TS500F-05 Specifications:

• Cable:
  • Weather resistant/UV resistant type SC extra hard usage cable
  • Temperature rating: -50°C to 105°C
  • Industry approvals: UL/MSHA Listed, RoHS compliant
  • Annealed Stranded Copper: per ASTM-B-172
  • Nominal strand: 1320 strands of 30 gauge wire
  • Nominal cable OD: 0.665″
• Connector:
  • Connector Type: Cam-type female series 16 inline
  • NEMA Rating: Type 3R – weatherproof
  • Sleeve material: santoprene (TPE)
  • Contact: Brass
  • Strain Relief: Copper shim & wire
