Lex TS600F-10-RGN 10 Ft 400 Amp Cam-Type Tie-In Set With Reverse Ground And Neutral (Green/White)

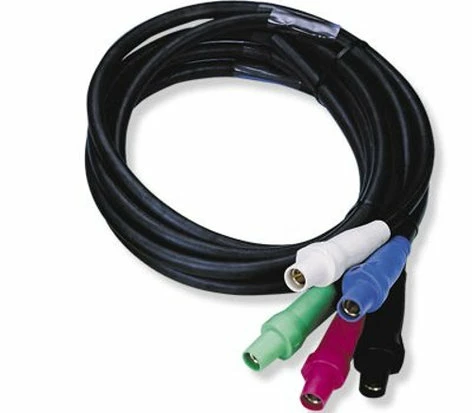

The Lex Products TS600F-10-RGN cam tail set is a 4/0 AWG Type SC cable with reverse ground and neutral (green/white). Featuring five 16 Series inline female connectors on end and bare cable on the other, the TS600F-10-RGN allows qualified personnel to tie-in to a lug or bus bar (ring terminal required for bus bar).

Lex Products TS600F-10-RGN Cam Tail Set Features:

• Weatherproof type cable assemblies
• Hard usage single layer thermoset jacket
• Provides excellent flexibility and resistance to oil and solvents
• Heat and flame resistant – will not melt

Lex Products TS600F-10-RGN Cam Tail Set Specifications:

• Rating: 400 Amps
• Cable:
  • Cable Type: Weather resistant/UV resistant type SC hard usage cable
  • Temperature rating: -50°C to 105°C
  • Industry approvals: UL/MSHA Listed, RoHS compliant
  • Annealed Stranded Copper: per ASTM-B-172
  • Nominal strand: 1320 strands of 30 gauge wire
  • Nominal cable OD: 0.665″
• Connector:
  • Connector Type: Cam-type female series 16 inline
  • NEMA rating: Type 3R – weatherproof
  • Sleeve material: santoprene (TPE)
  • Contact: Brass
  • Strain Relief: Copper shim & wire
