Link USA DNX5EBGDF10 10′ 5 Pin DMX D, DMX Cable

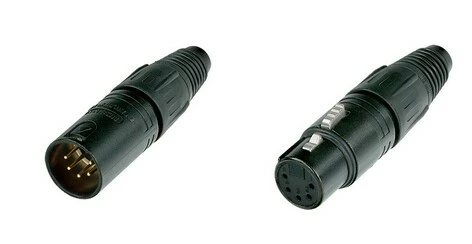

Designed specifically for long-distance lighting control applications, LinkUSA DMX D cables are 512-A standard DMX data transmission compliant. The DNX5EBGDF10 is a 10′ cable complete with soldered 5-pin Neutrik black and gold male / female connectors ready for immediate use.

Link USA DNX5EBGDF10 Features:

• DNX5EBGDF10
  • 512-A standard DMX compliant
  • Designed for long-distance control applications
  • 10-foot DMX cable with pre-soldered Neutrik connectors
• NC5X-B
  • Rugged zinc diecast shell, long-lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Colored rings and boots available for coding and marking
  • UL recognized components

Link USA DNX5EBGDF10 Specifications:

• General
  • Description/Conductor: Double pair for DMX 512
  • Capacitance 1 KHz: 32.5 ohm/km
  • Conductor/Conductor: 45 pF/m
  • Conductor/Shield: 80 pF/m
  • Nominal Impedance: 110 ohm
  • Attenuation 1 KHz: 2 db/100 m
  • Vel. of Prop.: 80%
  • Inductance: 60 μH/100 m
• Cable
  • O.D.: 8.30 mm
  • Operating temperature: -20°C/+70°C
• Jacket
  • Material: PVC Flame Retardant
  • Nominal Thickness: 1.75 mm
• Shield
  • Material: Aluminum – Mylar foil
  • Coverage: 100%
• Conductor
  • Quantity: 2+2
  • Strand: 19 x 0.20 mm
  • Area/AWG: 0.5 mm²/20
  • Insulation O.D.: 2.00 mm
  • Material: Annealed tinned copper foamed polyethylene insulated
