Designed specifically for long-distance lighting control applications, LinkUSA DMX D cables are 512-A standard DMX data transmission compliant. The DNX5EBGDF20 is a 20′ cable complete with soldered 5-pin Neutrik black and gold male / female connectors ready for immediate use.
Link USA DNX5EBGDF20 Features:
- DNX5EBGDF20
- 512-A standard DMX compliant
- Designed for long-distance control applications

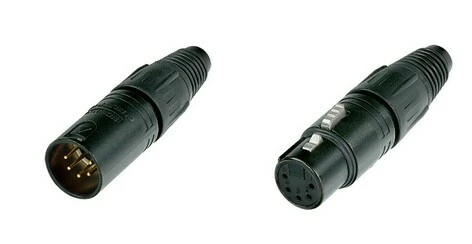

- 20 foot DMX cable with pre-soldered Neutrik connectors
- NC5X-B
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Colored rings and boots available for coding and marking
- UL recognized components
Link USA DNX5EBGDF20 Specifications:
- General
- Description/Conductor: Double pair for DMX 512
- Capacitance 1 KHz: 32.5 ohm/km
- Conductor/Conductor: 45 pF/m
- Conductor/Shield: 80 pF/m
- Nominal Impedance: 110 ohm
- Attenuation 1 KHz: 2 db/100 m
- Vel. of Prop.: 80%
- Inductance: 60 μH/100 m

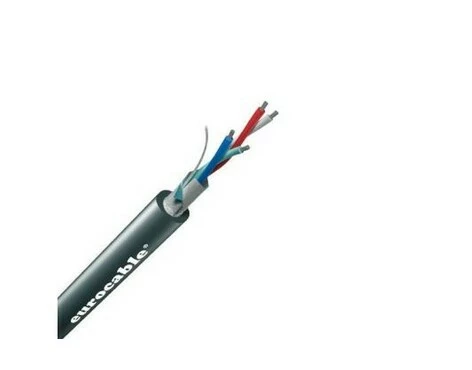

- Cable
- O.D.: 8.30 mm
- Operating temperature: -20°C/+70°C
- Jacket
- Material: PVC Flame Retardant
- Nominal Thickness: 1.75 mm
- Shield
- Material: Aluminium – Mylar foil
- Coverage: 100%
- Conductor
- Quantity: 2+2
- Strand: 19 x 0.20 mm
- Area/AWG: 0.5 mm²/20
- Insulation O.D.: 2.00 mm
- Material: Annealed tinned copper foamed
- polyethylene insulated
