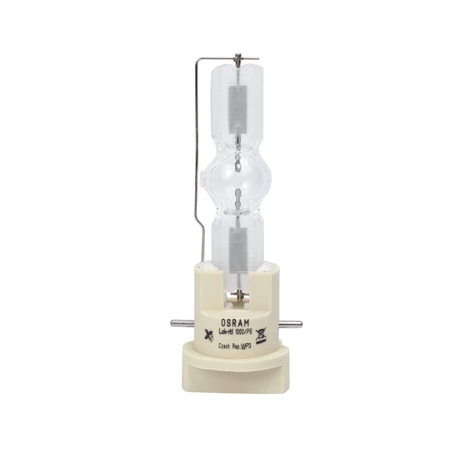

Osram Sylvania HTI1000PSLOKT # 55022, 1000W HID Discharge Bulb from the Osram Lok-it! Power Series.
Osram Sylvania HTI1000PSLOKT Applications:
Concert lighting
Club & Disco
Stage and theatre
Studio, TV and film
Architecture
Osram Sylvania HTI1000PSLOKT Features:
- Compact design and short arc gap allows for smaller and brighter fixures
- Fast lamp replacement with one-touch rotate and lock base and socket design
- Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
- Consistent lumen output over the life of the lamp
- Improved ceramic base allows high voltage up to 35kV
- Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
- Power series offers enhanced performance features and versatility, including BRILLIANT lamps with high CRI and BLUE lamps that offer 7500K for bright white light
Osram Sylvania HTI1000PSLOKT Specifications:
- General
- Manu. Product Number: 55022
- Manu. Product Name: HTI1000WPSLOKIT 1/CS 1/SKU
- Manu. Ordering Abbreviation: Lok-it 1000/PS
- Brand Name: OSRAM
- Family Brand Name: Lok-it!
- General Description: HTI, 1000 watt, metal halide, Power Series, PGJX36 base, 6000K Lok-it
- Electrical
- Nominal Wattage: 1000 W
- Nominal Voltage: 82 V
- Current: 12.2 A
- Light
- Luminous Flux: 85000 lm
- Light Center Length (LCL): 56 mm
- Color Temperature: 6000 K
- Color Rendering Index: 95
- Average Rated Life: 750 h
- Physical
- Base: PGJX36
- Bulb Shape: T
- Length l1 max.: 112 mm
- Length l2 max.: 104 mm
- Diameter d: 0.827″ (21.00 mm)
- Distance a: 56 mm
- Electrode Gap (cold): 5.5 mm
- Additional Product Data
- Operating Position: Any
- Maximum Base Temperature: 450 C
- Cooling: Forced
- Forced Cooling: Required
- Hot Restart: No
- Lamp Type: Single-End
