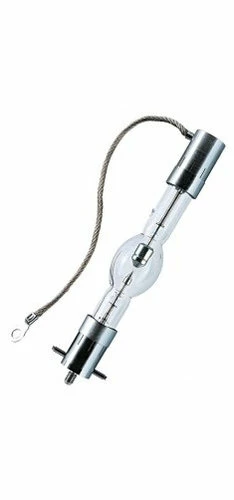

Osram Sylvania XBO1000WHS/OFR 1000W, 19V Xenon Arc Lamp

The OSRAM XBO 1000 W/HS OFR is a 1000 Watt Lamp that features a short arc with very high luminance for brighter screen illumination, high arc stability, constant color temperature of 6,000K throughout its lifetime, and instant light on screen, thanks to hot restart function. It’s easy to maintain and has a wide dimming range.

Typical applications:

• Classic 35 mm film projection
• Digital film and video projection
• Architectural and effect light (“Light Finger”)
• Sunlight simulation

OSRAM XBO 1000 W/HS OFR Specifications:

• Electrical Data
  • Nominal wattage: 1000 W
  • Lamp voltage: 19 V
  • Nominal current: 20.0 A
  • Lamp current: 50.00000 A
  • Current control range: 30…55 A
• Physical
  • Diameter: 40.0 mm
  • Length: 235.0 mm
  • Length with base excl. base pins/connection: 205.00 mm
  • Light center length (LCL): 95.0mm*
    • *Distance from end of base to tip of electrode (cold).
  • Electrode gap cold: 3.6mm
  • Shipping Carton Box:
  • Dimensions: 410mm x 180mm x 184mm
  • Weight: 830.80g
• Temperatures
  • Maximum permitted ambient temp. pinch point: 230 °C
• Lifespan
  • Lifespan: 2000 hour
• Additional Product Data
  • Base anode (standard designation): SFa27-11
  • Base cathode (standard designation): SFcX27-8
  • Product remark:
  • OFR = Ozone-free version/H = Suitable for horizontal burning position/S = Short
• Capabilities
  • Cooling: Forced (vertical and horizontal)
  • Burning position: s20/p20 (for vertical burning position: anode (+) on top)
• NOTE: Specifications and information subject to change without notice.
