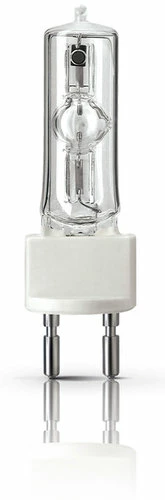

Philips Bulbs MSR575HR 575W, 95V HID Lamp

The Philips MSR 575 HR is a Philips MSR Hot Restrike bulb. With its optimized color temperature and a high color rendering index, the MSR Hot Restrike creates perfect ‘daylight’ in any condition. Also, its single-ended lamp design enables hot re-ignition, ensuring that “daylight” lighting with superb color rendition is always available instantly. This bulb also incorporates the innovative P3 technology, developed by Philips, allowing for use at higher temperatures, and extending lifetime as well as consistency of high-quality light output.

Philips MSR575HR Specifications:

• General Characteristics
  • System Description: Hot Restrike
  • Cap-Base: G22
  • Cap-Base Information: –
  • Execution: –
  • Operating Position: Any
  • Main Application: Studio/Theatre
  • Life to 50% failur EM: 1000 hr
• Light Technical Characteristics
  • Color Code: –
  • Color Rendering Index: 90 Ra8
  • Color Temperature: 6000 K
  • Color Temperature Technical: 6025 K
  • Chromaticity Coordinate X: 323 –
  • Chromaticity Coordinate Y: 328 –
  • Luminous Flux Lamp EM: 40000 (min), 49000 (nom) Lm
  • Luminous Efficacy Lamp EM: 85 Lm/W
  • Color Rendering Index (SO): Ra8
  • Chromaticity Coordinate X (SO): –
  • Chromaticity Coordinate Y (SO): –
  • Color Temperature (SO): K
  • Luminous Flux (SO): Lm
  • Luminous Efficacy Lamp (SO): Lm/W
• Electrical Characteristics
  • Lamp Wattage: 575 W
  • Lamp Current: 6.95 A
  • Ignition Supply Voltage: 207 (min) V
  • Dimmable: Yes
• Luminaire Design Requirements
  • Pinch Temperature: 350 (max) C
  • Bulb Temperature: 700 (max) C
• Product Dimensions (please refer to above diagram)
  • Overall Length C:145 (max) mm
  • Diameter D: 30 (max) mm
  • Width F: 41 (min), 42 (nom), 43 (max) mm
  • Light Center Length L: 69 (min), 70 (nom), 71 (max) mm
  • Arc Length O: 7.0 mm

Note

NOTE: For professional use only-not for domestic/household use
