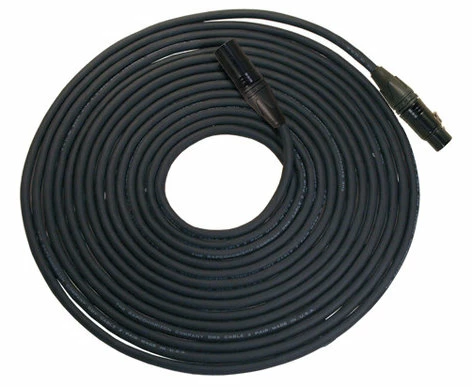

Rapco NBGDMX3-50 50′ 3-Pin Neutrik DMX Cable, Black

RapcoHorizon’s NBGDMX3-50, a 50ft length of their single-pair DMX cable, is made with 24 gauge conductors, and is commonly used for controlling stage lighting and effects, along with being employed to link special effects devices like fog machines, moving lights, plus more advanced fixtures as well. All of RapcoHorizon’s DMX cables are soldered by trained personnel right in their facilities.

RapcoHorizon’s NBGDMX3-50 Features:

• Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
• Black matte PVC jacket is very flexible yet durable
• Quality metal Rapcohorizon, Neutrik, or Switchcraft connectors
• Individually tested for performance and quality

RapcoHorizon NBGDMX3-50 Specifications:

• Length: 50ft
• Cable: DMX-1PR
• Conductor Gauge: 24 gauge, 1 pair
• Shield: Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
• Jacket: Matte PVC
• O.D.: 0.210″
• Capacitance: 13.5 pF/ft. @ 1 kHz
• Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
• Characteristic Impedance: 110 Ohms NOMINAL
• D.C. Resistance @ 20°C: 25.4 Ohms/1000′
