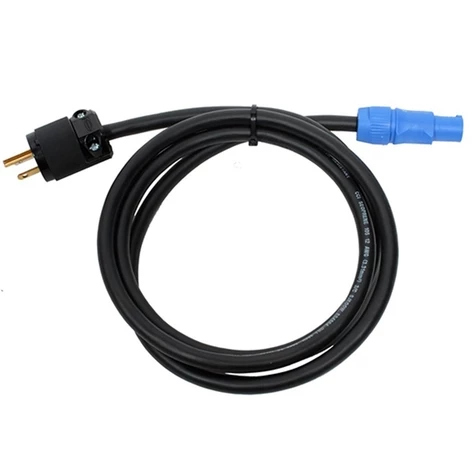

Rapco PWRCON/20M-15 15′ NAC3FCA To 5366 Male Edison Powercon Cable

RapcoHorizon’s PWRCON/20M-15 is a power cable with a Neutrik NAC3FCA powercon connector on end and a 5366 male 20A Edison connector on the other end.

The powercon is a lockable 3-pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 20A/250VAC. Color coded for easy identification, powercon offers power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of intermating.

The cable is a 300V 12 AWG UL listed 3-conductor oil resistant Thermoset jacketed heavy duty black power cord. Professionally assembled in RapcoHorizon’s in-house cable shop for powering various gear that utilizes the Neutrik powercon connector.

Please note that the powercon is a connector without breaking capacity – the powercon should not be connected or disconnected under load or live.

Features

• (3) 12 gauge conductors
• 90°C UL/CSA type SJ/SJOOW, 300V wire is sunlight, water, oil and weather resistant
• Oil resistant Thermoset black CPE jacket is flexible yet durable
• Bare annealed copper conductors
• Individually tested for performance and quality

Specifications

• Cable: SJ12/3
• Conductor Gauge: (3) 12 gauge
• Jacket: Black oil-resistant thermoset CPE
• O.D.: 0.430″

NOTE:

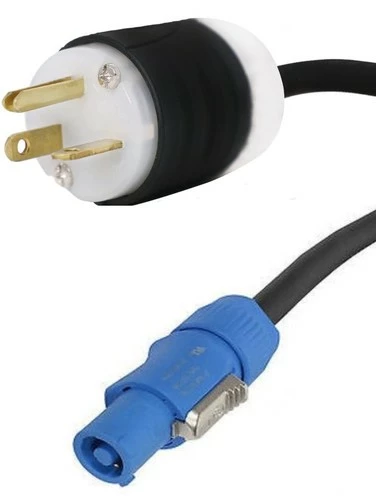

Actual product will vary from image shown above, it is terminated with a NAC3FCA (Blue) connector and a 5366 male 20A Edison connector. For more information on this and other products, please contact your Sales Pro.
