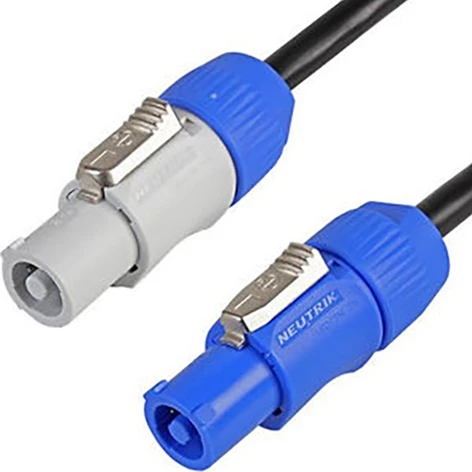

Rapco PWRCON20-3 3′ NAC3FCA To NAC3FCB PowerCon Cable

This is a PowerCon cable from ProCo. It is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and pre-mating safety grounds. It is rated at 20A/250V ac. Color coded for easy identification, PowerCon offers power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of inter-mating.

Pro Co PWRCON20-3 Specifications:

• (3) 12 gauge conductors
• 90°C UL/CSA type SJ/SJOOW, 300V wire is sunlight, water, oil and weather resistant
• Oil resistant Thermoset black CPE jacket is flexible yet durable
• Bare annealed copper conductors
• Neutrik PowerCon (blue) to Neutrik PowerCon (grey)
• Individually tested for performance and quality
• O.D. —— 0.430”
