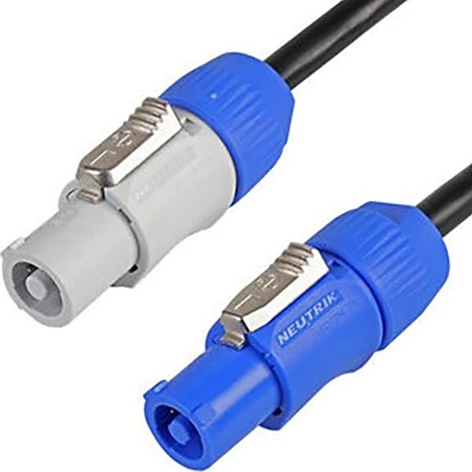

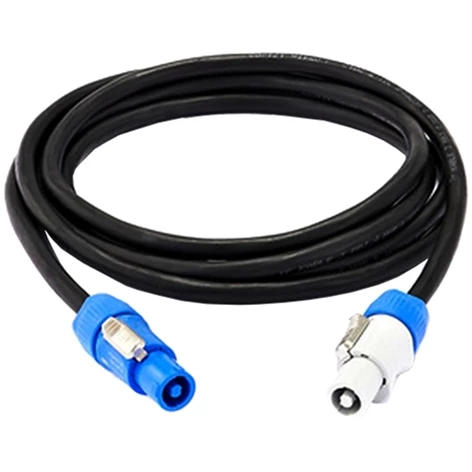

Rapco PWRCON20-6 6′ NAC3FCA To NAC3FCB PowerCon Cable

The Powercon from RapcoHorizon is a lockable 3-pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 20A/250VAC. Color coded for easy identification, Powercon offers power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of intermating.

The cable is a 300V 12 AWG UL listed 3-conductor oil resistant Thermoset jacketed heavy duty black power cord. Professionally assembled in RapcoHorizon’s in-house cable shop for powering various gear that utilizes the Neutrik Powercon connector.

Please note that the Powercon is a connector without breaking capacity – the Powercon should not be connected or disconnected under load or live.

Features

• (3) 12 gauge conductors
• 90°C UL/CSA type SJ/SJOOW, 300V wire is sunlight, water, oil and weather resistant
• Oil resistant Thermoset black CPE jacket is flexible yet durable
• Bare annealed copper conductors
• Individually tested for performance and quality

Specifications

• Cable: SJ12/3
• Conductor Gauge: (3)12 gauge
• Jacket: Black oil-resistant thermoset CPE
• O.D.: 0.430″
