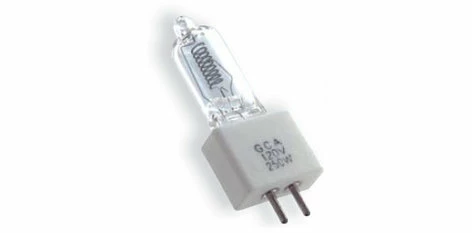

Ushio GCA-USHIO 250W, 120V Halogen Lamp

The USHIO GCA, JCV120V-250WC/1000647 is a 250W 120V T3 1/2 Halogen low voltage Bi-pin Miniature Base – G5.3 Bulb.

USHIO GCA [1000647] Specifications:

• Electrical Properties:
  • Watts: 250W
  • Volts: 120V
  • Voltage Group: Line Voltage
• Physical Characteristics:
  • Shape: T3 1/2
  • Base: G5.3 / 2-PIN
  • Ends: Single Ended
  • Overall Length: 2.24″
  • Diameter: 0.45″ (11.5mm)
  • MOL: 2.25″ (57mm)
  • LCL: 1.26″ (32mm)
  • Burning Position: Base Down to Horizontal
  • Filament: CC08 / Coiled Coil Axial
  • Bulb Finish: Clear
• Light Output Measurement
  • Lumens: 5880
• Color Characteristics
  • Temp: 3200K
• Life
  • Avg. Lamp Life: 200 hrs.

NOTE:

Only for Use in Approved Enclosed Halogen Fixtures.
